Description
Premier, high-performance, full-range surface-mount loudspeaker designed for foreground music and speech reproduction in a wide range of installed applications. Features a rotatable array that delivers a 180° x 75° coverage pattern and a frequency range down to 60 Hz.
For indoor and outdoor applications.

EN 54-24 compliant DS loudspeaker models are also available for use in Voice Alarm (VA) systems. Please contact your local Bose team for availability information.
FEATURES
Extended-range, high-performance loudspeaker with two (2) 2.25" (57 mm) Twiddler® drivers and a single 5.25" (133 mm) woofer in a ported enclosure designed for surface-mounted foreground and background music and paging applications
Proprietary Articulated Array® speaker configuration provides 180° H x 75° V coverage out of the box when the loudspeaker is mounted horizontally. Array can be rotated for horizontal or vertical use
Simple 1->2->3 installation system. Mounting hardware allows for horizontal and vertical orientation with adjustable pitch or yaw
Integrated multi-tap transformer with innovative thumb wheel adjustment for easy-to-change tap settings from under front end cap
Shared voicing across entire FreeSpace DS product family enables DS 16, DS 40 and DS 100 loudspeakers to be integrated on the same system and maintain consistent tonal quality
Supported by a suite of accessories, including wall-mount bracket, ceiling-mount bracket, pole-mount bracket and junction boxes
Applications
- Retail stores
- Restaurants and bars
- Concourse
- Transportation facilities
- Resorts and hospitality venues
- Houses of worship
- Ballrooms
SPECS
Technical Summary
Frequency Response (+/-3 dB)
75 Hz - 18 kHz
Frequency Range (-10 dB)
60 Hz - 20 kHz
Nominal Dispersion
180° H x 75° V
Long-Term Power Handling
100 W (400 W peak)
Sensitivity (SPL / 1 W @ 1 m)
85 dB SPL
Maximum SPL @ 1 m
105 dB SPL (111 dB SPL peak)
Nominal Impedance
8 Ω (transformer bypassed)

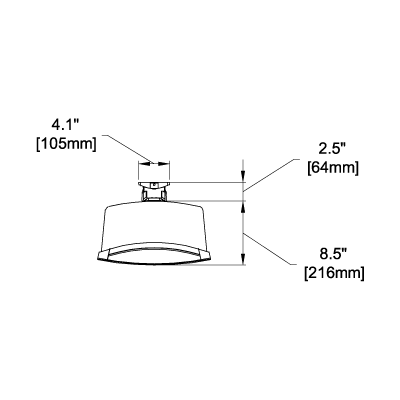

Mechanical Diagrams

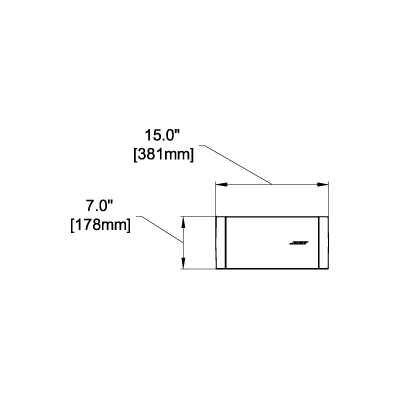

Front View

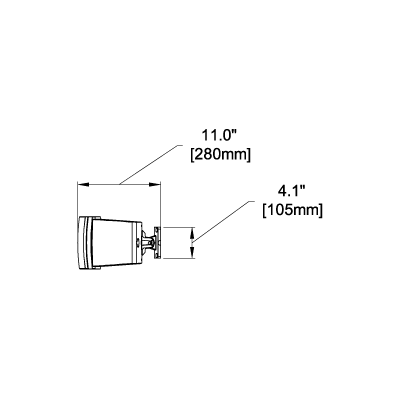

Top View
