Sonance - Invisible Series

Sonance Invisible Series

Invisible Speakers are the pinnacle of the Sonance “Designed to Disappear” strategy. After a multi-year development process, the all-new Motion Flex Invisible Series line incorporates new breakthroughs in installation and audio quality, and firmly entrenches Sonance as the unrivaled leader in discreet performance audio.

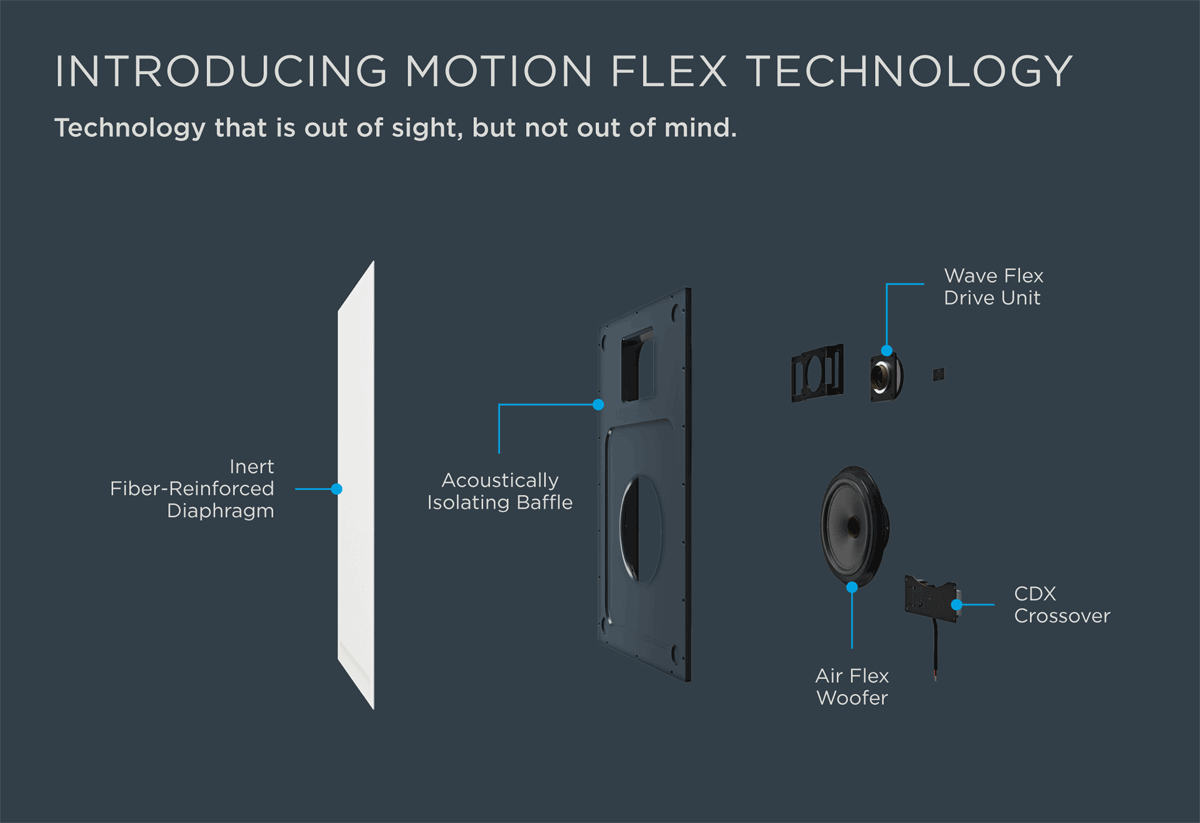

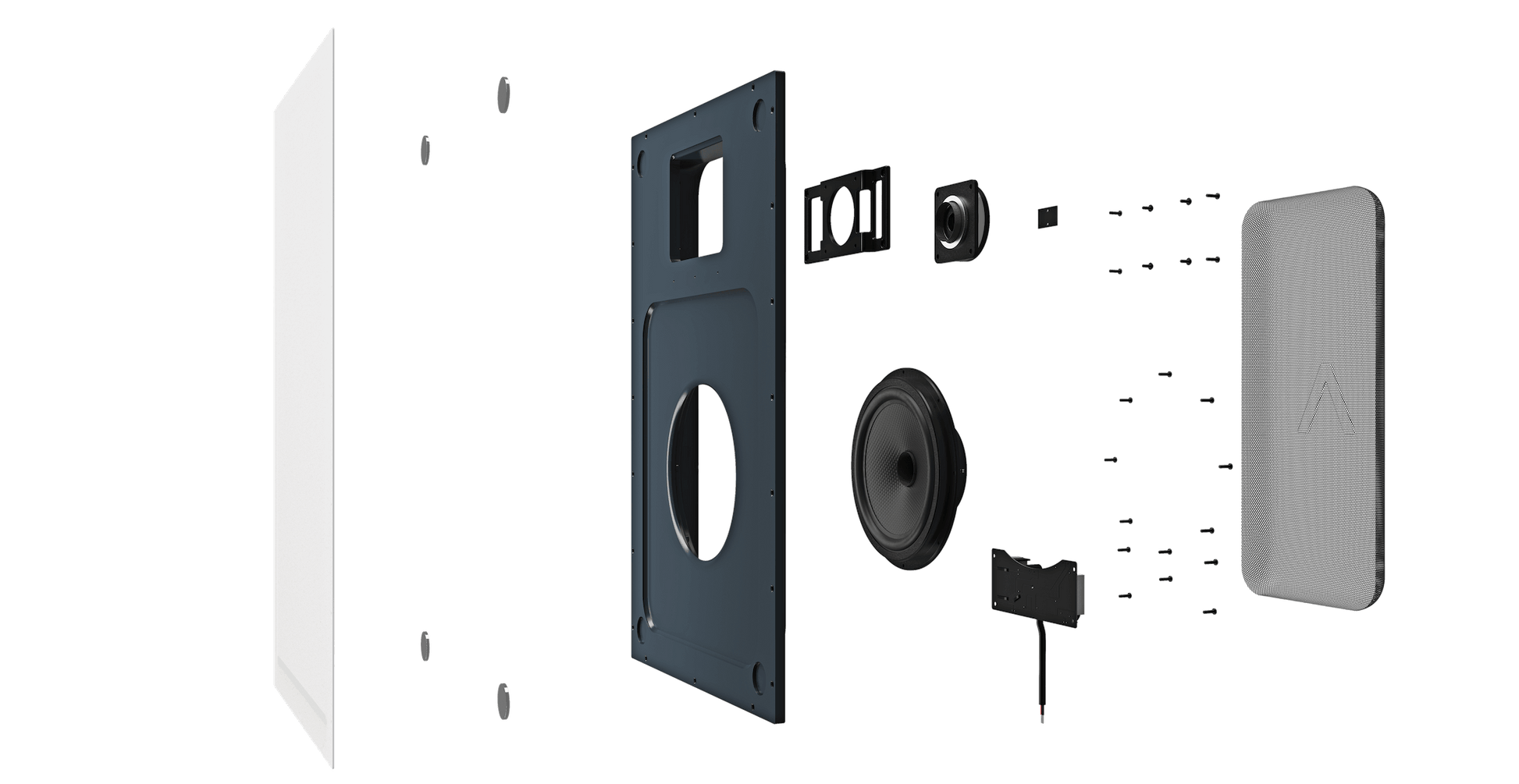

MOTION FLEX TECHNOLOGY

A suite of advancements in invisible speaker engineering for unparalleled acoustic performance from an invisible speaker

WAVE FLEX DRIVE UNIT

High-bandwidth midrange and high-frequency transducer that leverage the bending-wave principle, delivering velvety-smooth mids and crystal-clear highs

AIR FLEX WOOFER

Glass-fiber woofer coupled to an acoustically inert diaphragm to move a pocket of air like a piston for robust and powerful bass

ACOUSTICALLY ISOLATED BAFFLE

The diaphragm is split into two active areas that are completely isolated to enable ultra-low distortion sonic transparency like never before

CONSTANT DIRECTIVITY CROSSOVER (CDX)

The proprietary Sonance CDX provides uniquely smooth off-axis frequency response for greater fidelity and coverage and almost 180° of horizontal and vertical dispersion

SONANCE DEPTH IDENIFICATION SENSING CALIBRATION (DISC) SYSTEM

Uses a high-accuracy depth gauge and embedded locator discs to measure the thickness of a finish applied over the surface of a Sonance Invisible Speaker, allowing for a consistent finish and performance within specifications every time

SPECIFICATIONS

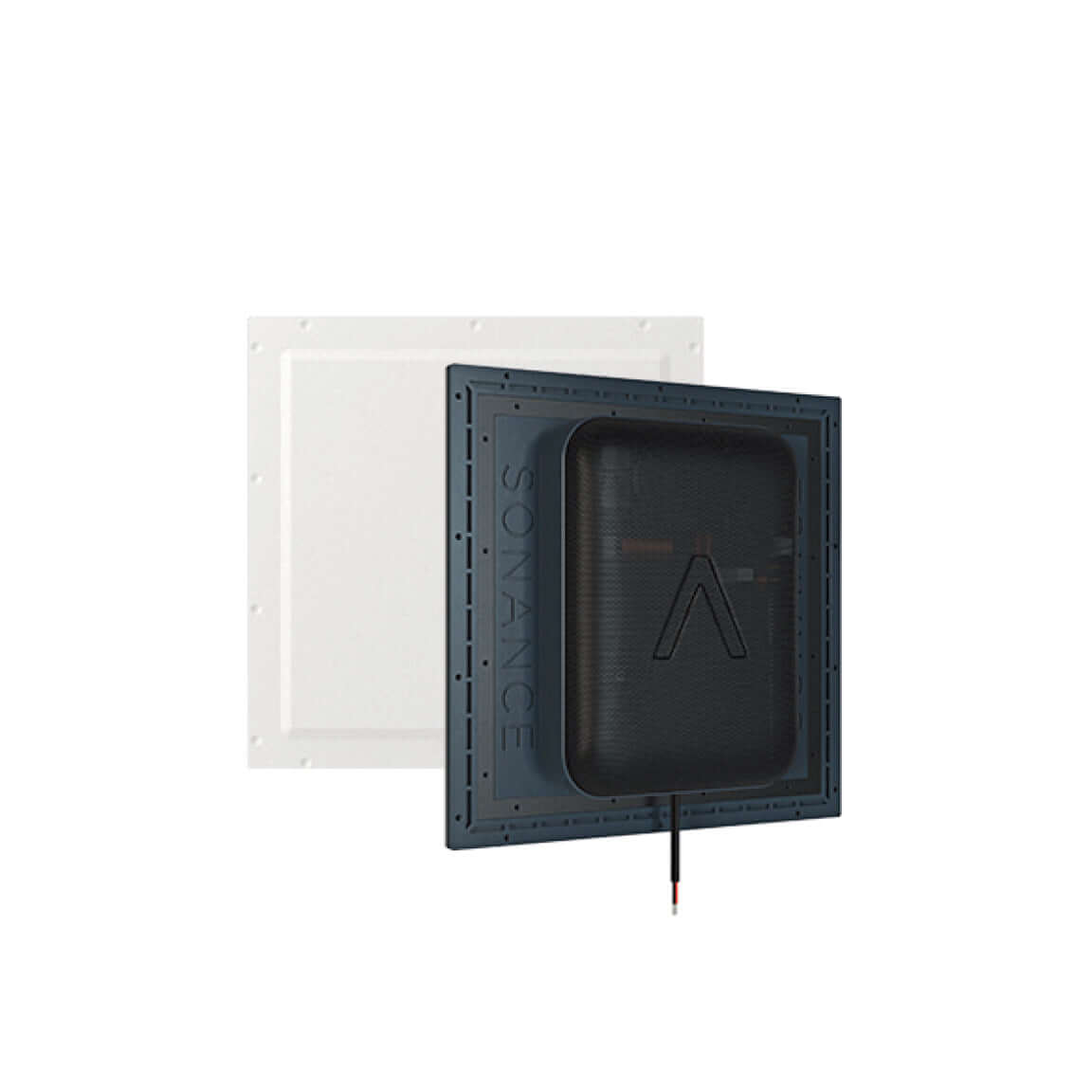

IS6
Wave Flex Drive Unit: 20in² (127cm²) bending wave diaphragm 1.75" (44mm) voice coil
Air Flex Woofer: 98in² (633cm²) air pulse diaphragm 6.5" (165mm) carbon fiber woofer
Frequency Response: 50Hz–30kHz (±3dB)
Impedance: 6 Ohms Nominal
Power Handling (RMS): 100W
Sensitivity (2.83V/1m): 84dB
Dispersion: 170º hemispherical up to 10kHz
Dims (WxHxD): 409mm x 409mm x 80mm
Mounting Depth: 68mm
Back Dims(WxH): 241mm x 329mm
Product Weight: 5.55 kgs

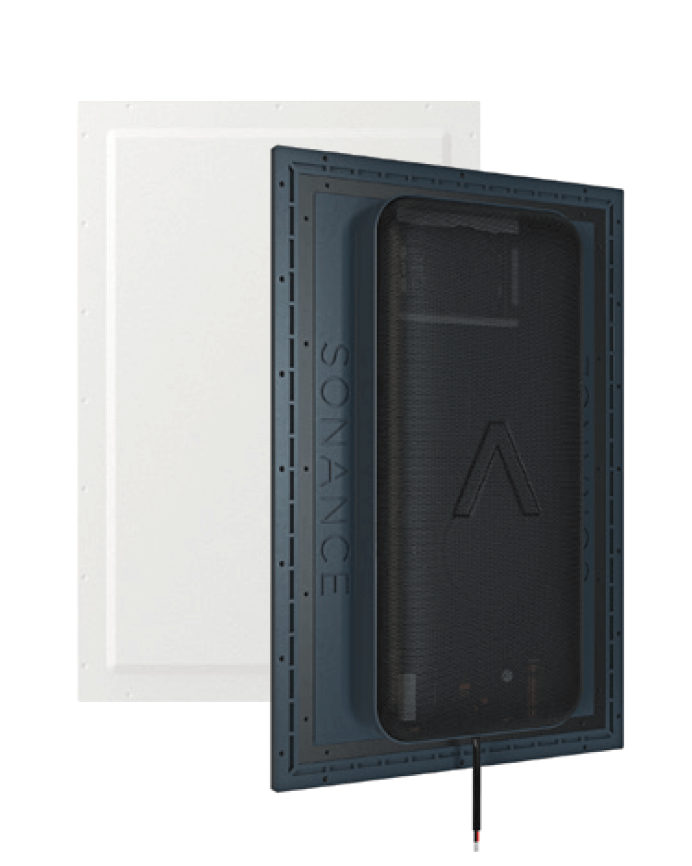

IS8
Wave Flex Drive Unit: 29in² (188cm²) bending wave diaphragm 1.75" (44mm) voice coil
Air Flex Woofer: 191in² (1234cm²) air pulse diaphragm 8" (203mm) carbon fiber woofer
Frequency Response: 40Hz–30kHz (±3dB)
Impedance: 6 Ohms Nominal
Sensitivity (2.83V/1m): 86dB
Dispersion: 170º hemispherical up to 10kHz
Dims (WxHxD): 409mm x 613mm x 80mm
Mounting Depth: 68mm
Back Dims (WxH): 241mm x 533mm
Product Weight: 7.63 kgs

IS10
Wave Flex Drive Unit: 29in² (188cm²) bending wave diaphragm 1.75" (44mm) voice coil
Air Flex Woofer: 244in² (1573cm²) air pulse diaphragm 10" (254mm) carbon fiber woofer
Frequency Response: 35Hz–30kHz (±3dB)
Impedance: 6 Ohms Nominal
Power Handling (RMS): 200W
Sensitivity (2.83V/1m): 87dB
Dispersion: 170º hemispherical up to 10kHz
Dims (WxHxD): 409mm x 728mm x 80mm
Mounting Depth: 68mm
Product Weight:8.55 kgs
