KEF
KEF CI160QR
KEF CI160QR
Regular price
$649.00 NZD
Regular price
Sale price
$649.00 NZD
Taxes included.
Quantity

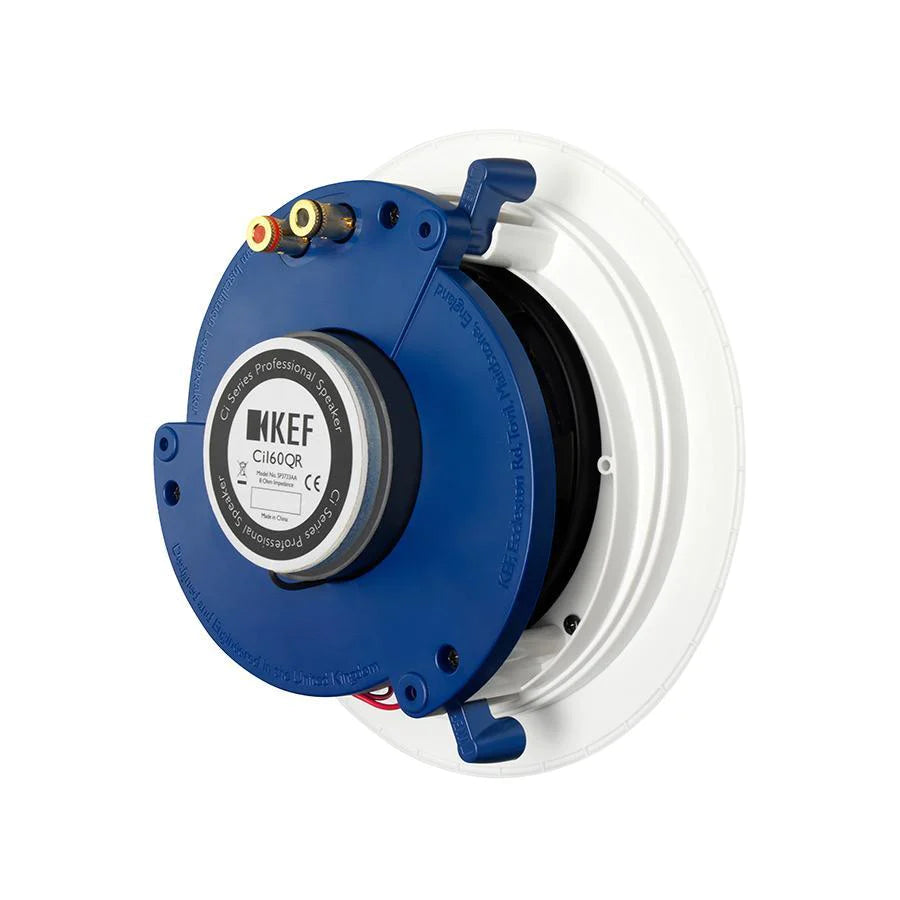

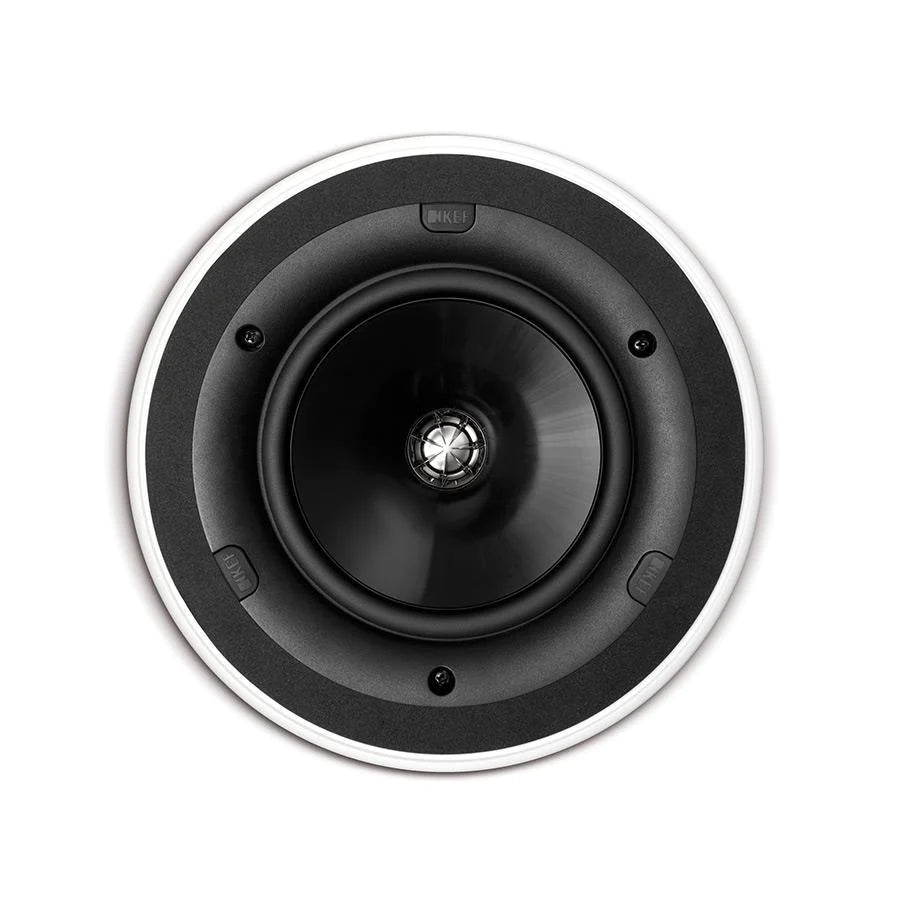

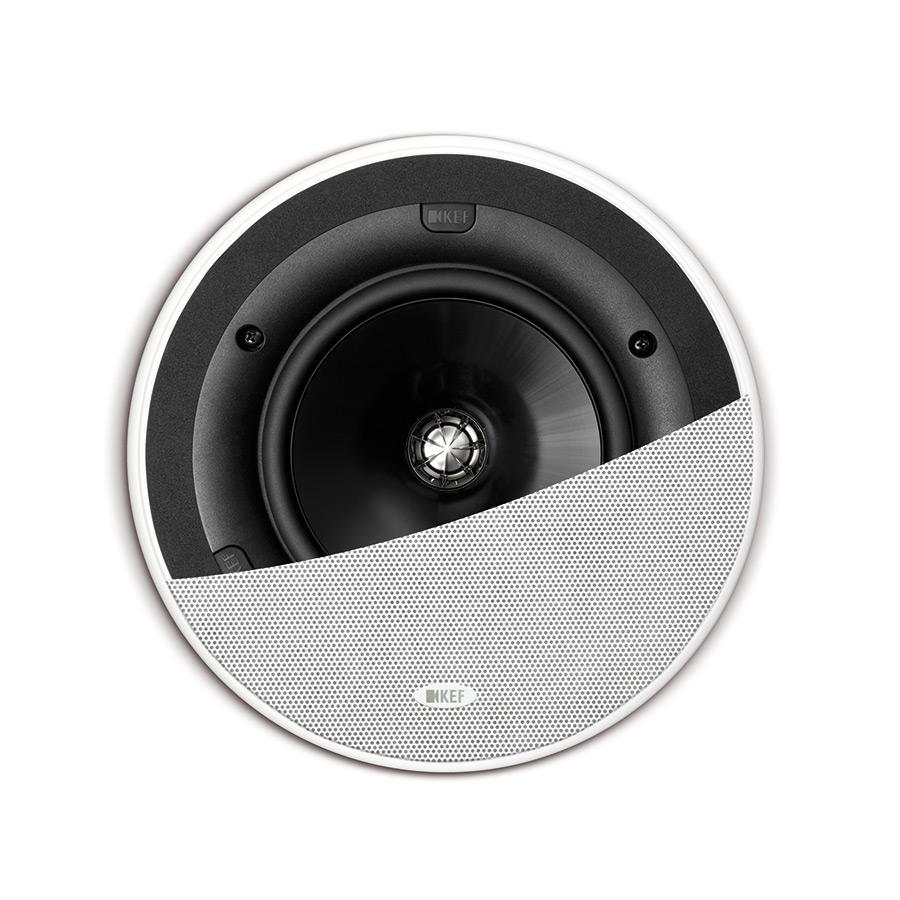

KEF Ci160QR
Ci160QR is an in-ceiling Ultra Thin Bezel loudspeaker with a 160 mm Uni-Q array and tangerine waveguide for wide dispersion and discreet ceiling integration.
Key features & technologies
- Uni-Q® 160 mm
- Wider coverage so you can use fewer speakers.
- UTB™
- Narrow visible rim.
- Gold-plated spring binding posts
- Reliable install connections.
What's in the box
- Ci160QR loudspeaker
- Grille
- Installation information
Specifications
| Nominal impedance | 8 Ohm |
|---|---|
| Sensitivity | 89 dB (2.83 V / 1 m) |
| Crossover | 3.0 kHz |
| Frequency response | 38 Hz - 34 kHz (±6 dB) 2π/open-backed |
| Drive units | LF 160 mm (6.5 in.); HF 19 mm (0.75 in.) |
| Recommended amplifier power | 10 - 125 W |
| External diameter × depth | 234.6 mm × 98 mm |
| Cut-out diameter | 196 mm |
| Ceiling thickness | 6–36 mm |
| Mounting depth from surface | 91 mm |
| Optional rough-in frame | RIF160R |
| Net weight | 2.05 kg |
| Unit | Piece |
Ideal room / use
In-ceiling music and home theatre channels.
Pairing suggestions
- Matching Ci-Q models
- RIF160R rough-in frame
Official resources
Product page · Ci group specification sheet (PDF)
Specifications sourced from KEF. KEF reserves the right to amend specifications. E&OE.
