KEF CI160QS
KEF CI160QS
Available for dispatch from supplier
✔️ ETA - Average 1-2 weeks

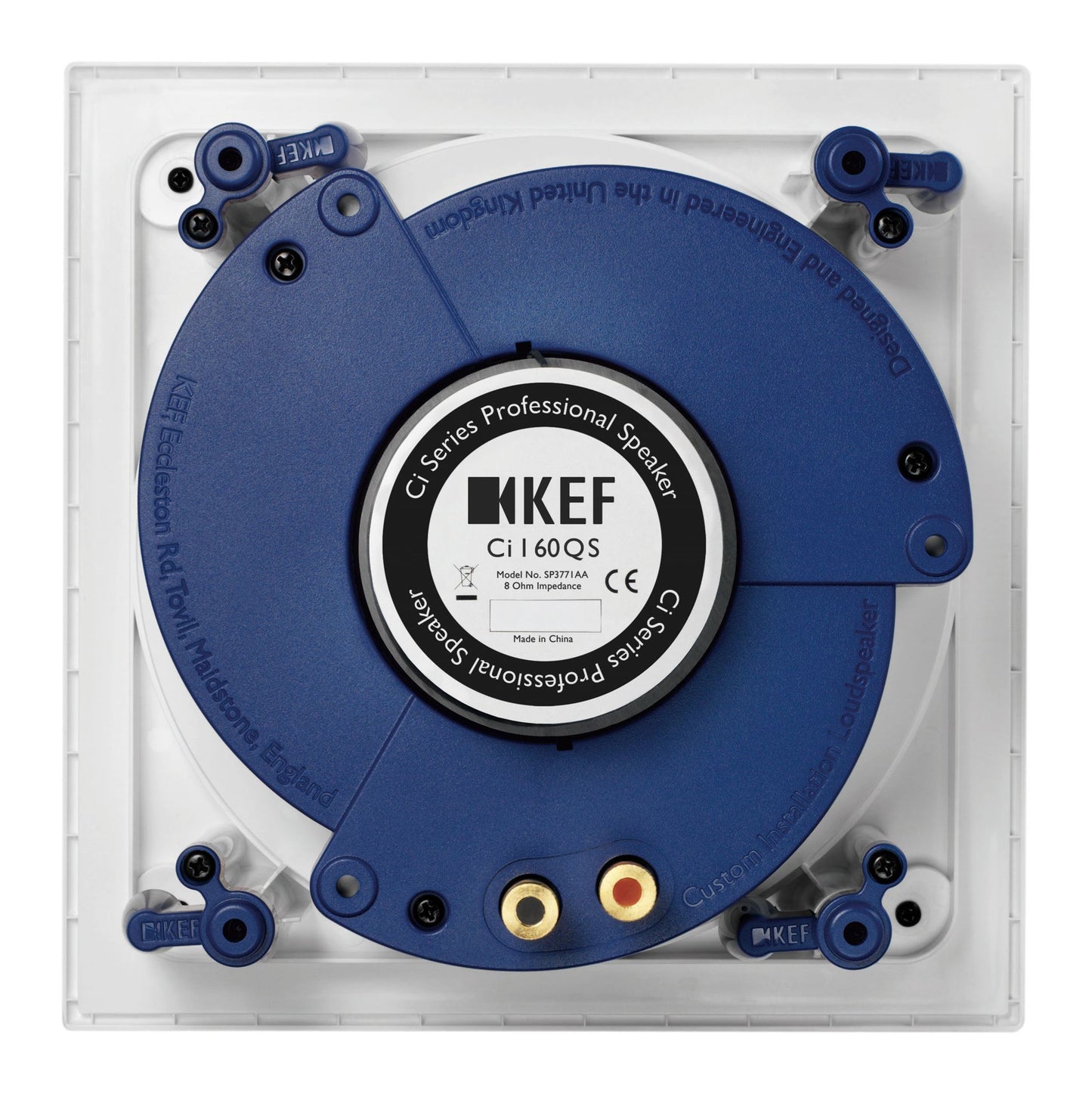

KEF Ci160QS
Features KEF’s patented Uni-Q driver array The stylish Ci160QS square in-wall / in-ceiling ultra thin bezel loudspeaker features a narrow rim allow for flawless integration into your ceiling and KEF's patented Uni-Q driver, which spreads sound over a wider area - enabling you to use fewer speakers while optimizing the
Featuring KEF's sophisticated 'sit anywhere' Uni-Q driver array, which places the tweeter in the acoustic centre of the bass/midrange cone, this allows both the tweeter and woofer to act as a single point source that disperses the sound widely and evenly throughout the room. Together with the discreet Ultra Thin Bezel (UTB) design, offering the slimmest possible visible rim around the speaker, the Ci-Q Series range gives you tremendous freedom to position the speakers where you please.
Please visit our Ci Software Download page for more details.
Key features & technologies
- Uni-Q® driver array
- KEF's point-source array for wide, even dispersion.
- UTB™ Ultra Thin Bezel
- Slim visible rim for discreet installation.
- Metamaterial Absorption Technology (MAT™)
- Absorbs unwanted rear tweeter sound for purer highs (where fitted).
Specifications
| Nominal impedance | 8 Ω |
|---|---|
| Sensitivity | 89dB (2.83V/ 1m) |
| Crossover frequency | 3.0kHz |
| Frequency response | (±6dB) open-backed |
| Drive units | LF: 160mm (6.5in.) HF:19mm (0.75in.) |
| Recommended amplifier power | 10 - 125W |
| External dimensions | 223 mm x 223 mm x 97 mm (8.78 in. x 8.78 in. x 3.82 in.) |
| Cut-out dimensions | 194 mm x 194 mm (7.64 in. x 7.64 in.) |
| Mounting depth from surface | 91mm (3.58in.) |
Ideal room / use
In-wall / in-ceiling subwoofer channel; typically requires KASA500 amplifier where specified.
Pairing suggestions
- Matching KEF Ci models for multi-channel systems
- Official rough-in frame where listed
- KEF subwoofer / KASA500 as applicable
Official resources
Product page · Ci group specification sheet (PDF)
Specifications sourced from KEF. KEF reserves the right to amend specifications. E&OE.
