Marantz AMP10 Reference 16 Channel Power Amplifier

Peerless Performance

Immersive spaciousness, warm and rich tone, extraordinary detail and lifelike dynamics are legendary hallmarks of Marantz sound.

Technology Leader

AMP 10 is engineered using best-inclass technologies to enable extraordinary power output; high channel count; and the dynamic, rich, warm sound for which Marantz is highly renowned.

Exquisite Design

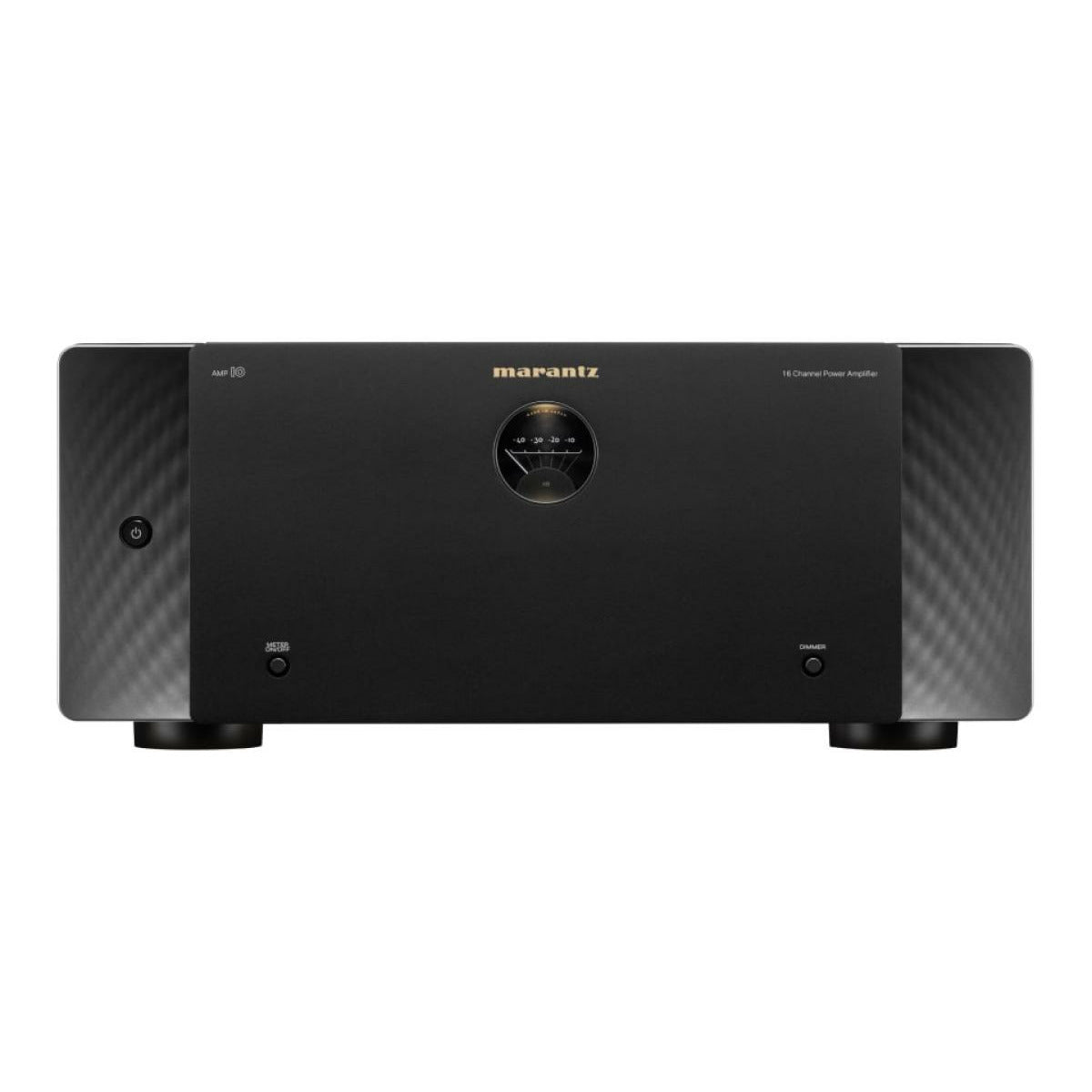

A modern expression of timeless design principles, AMP 10 features the iconic Marantz porthole level meter, premium materials, and subtle sidelights that illuminate the front panel.

Ultimate Performance

We developed custom Class D amplifiers and refined our own HDAM-SA2 technology to create the most incredible theatrical experience possible in your home.

Style

Excellence is heard and seen. AMP 10 is meticulously crafted with authentic materials in a modern style befitting its rich heritage and stunning performance.

Customizability

Thoughtfully curated connectivity options and selectable amplifier modes let you make AMP 10 your own.

Powerful

AMP 10 gives you 16 channels of commanding power, deftly nuanced.

Specifications

Multi-Room / CI

IP Control / RS232 Control / Web Control / App Control: No / Yes / No / No
IR Flasher In: Yes
Marantz Remote Bus: Yes
DC Trigger Input/ Output: 1 / 1

Others

Front Display: Level Meter
Firmware Update by Network / USB / RS232C: No / No / No
Auto Power off: Yes

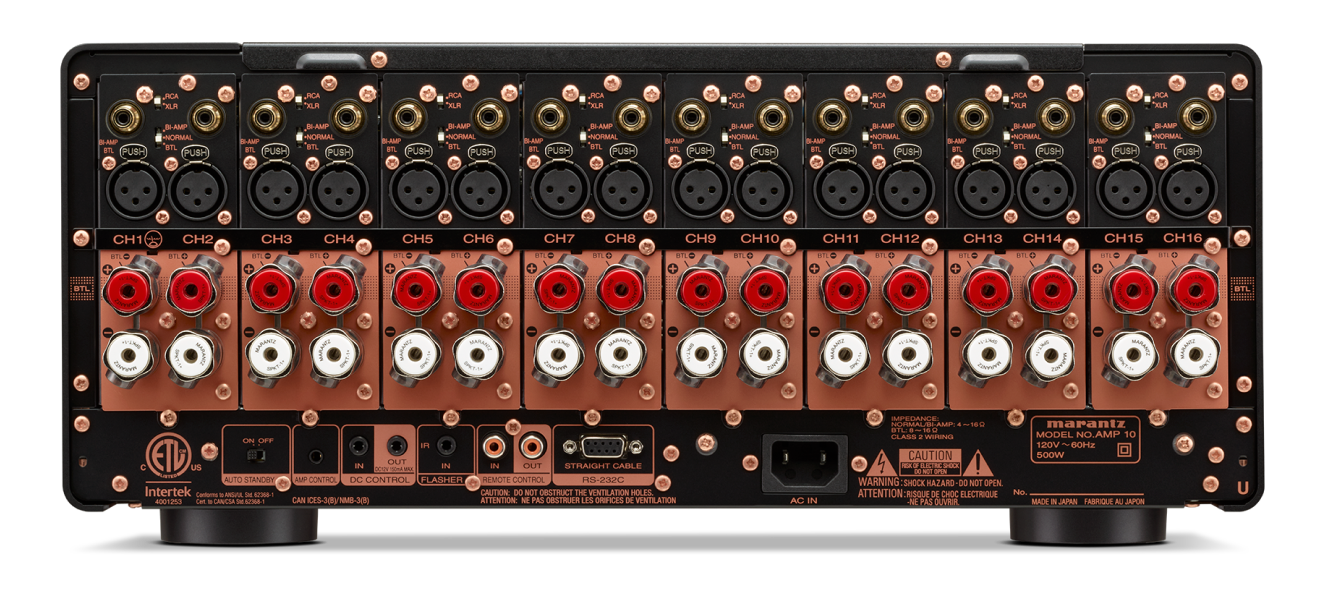

Inputs/Outputs

Main Amplifier in Balanced & Unbalanced: 16ch (Exclusive use by a selector switch.)
Speaker Terminal SPKT-1+
Number of Speaker Terminals: 16
Bi-Amp Drive /BTL Drive: Yes / Yes
Level Meter: Yes
Chassis Copper Plated
Number of power amps: 16
Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL: 200W / 400W
Power Output (4 ohm, 1 kHz, 0.7% 2ch Drive) Normal: 400W
Power Output (8 ohm, 1 kHz, 0.7% 5ch Drive) Normal: 200W
