NAD C558 Turntable

NAD C558 Turntable

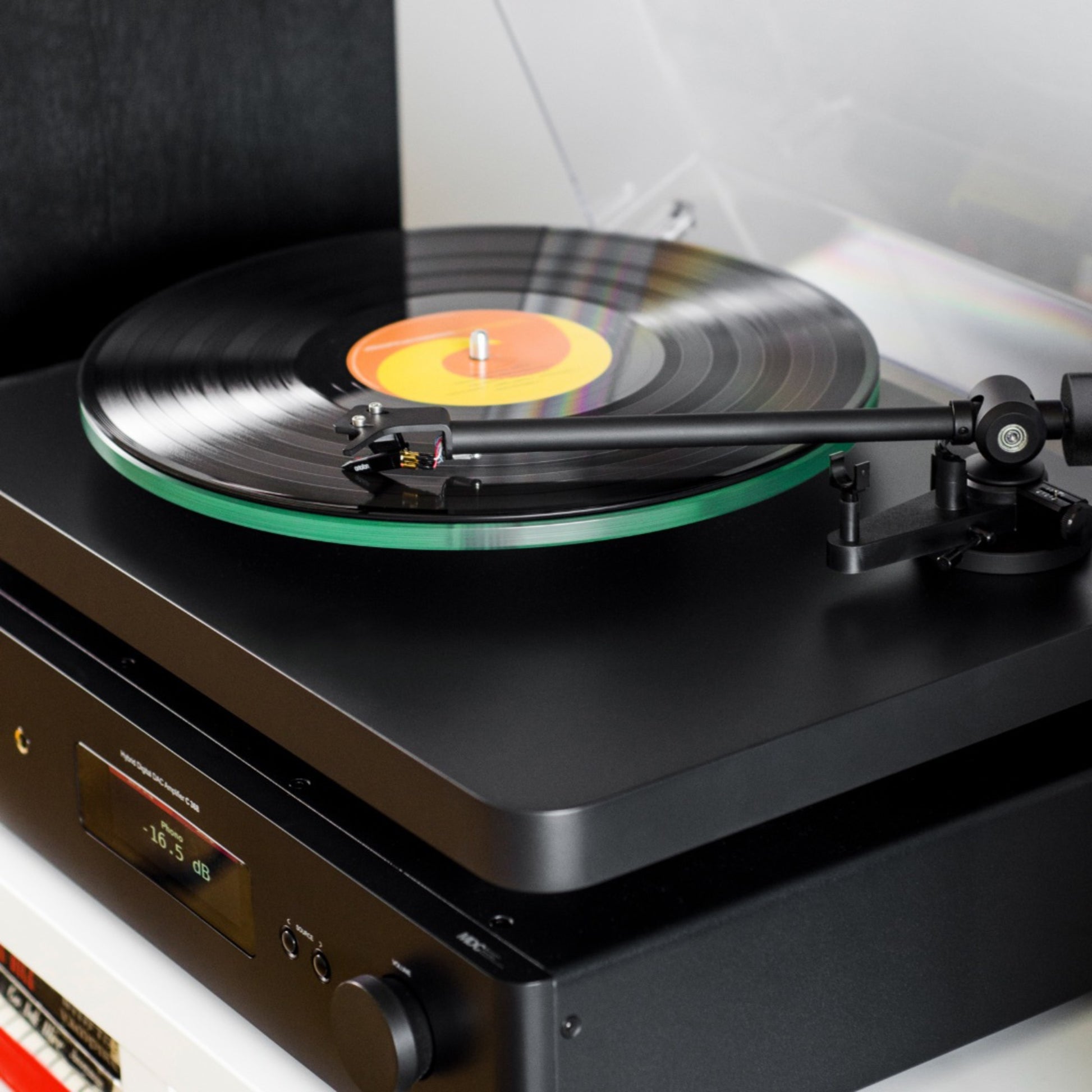

Throughout our rich 45-year history, NAD Electronics has been offering high performance turntables at unbelievably stellar prices. An affordable component that critical listeners can applaud for its musical quality,the NAD C 558 is a full-featured, belt-driven model targeted for vinyl enthusiasts everywhere. Pre-fitted with an Ortofon OM10 phono cartridge, the C 558 features a belt drive for maximum noise isolation, as well as a precision AC motor with isolated AC power supply that has universal voltage. Complimented by a glass platter with felt pad, a MDF plinth, and a low resonance dust cover, the C 558 delivers an outstanding listening experience unlike any other.

When it comes to the C 558, we have chosen to use a sophisticated power supply that transforms the AC alternating voltage of your wall socket into a pure DC voltage. The DC voltage is then regenerated into a precise AC voltage that powers a precision clock motor to achieve nearly perfect speed consistency and smoothness. The motor itself is isolated from noise and voltage fluctuations that occur in the unfiltered AC mains that can cause instability in the motor. The motor uses a specially developed rubber belt that is flat ground for precision and drives a non-resonant sub platter that is also precisely machined for smooth rotation. This sits in a brass bearing with a hardened steel shaft. All of these parts are carefully developed to work together to provide a remarkably stable and precise rotation of the disc.

The C 558’s tonearm also offers a similar level of careful engineering and development. At 9” long it offers low tracking distortion while maintaining rigidity and low mass required to stabilise the cartridge. By allowing VTF and Azimuth adjustment we get precise tracking with low distortion and record wear.

The glass platter and massive plinth combine to extract all the energy from the disc while isolating unwanted external vibration. These details further ensure that your vinyl listening experience is truly transcendent.

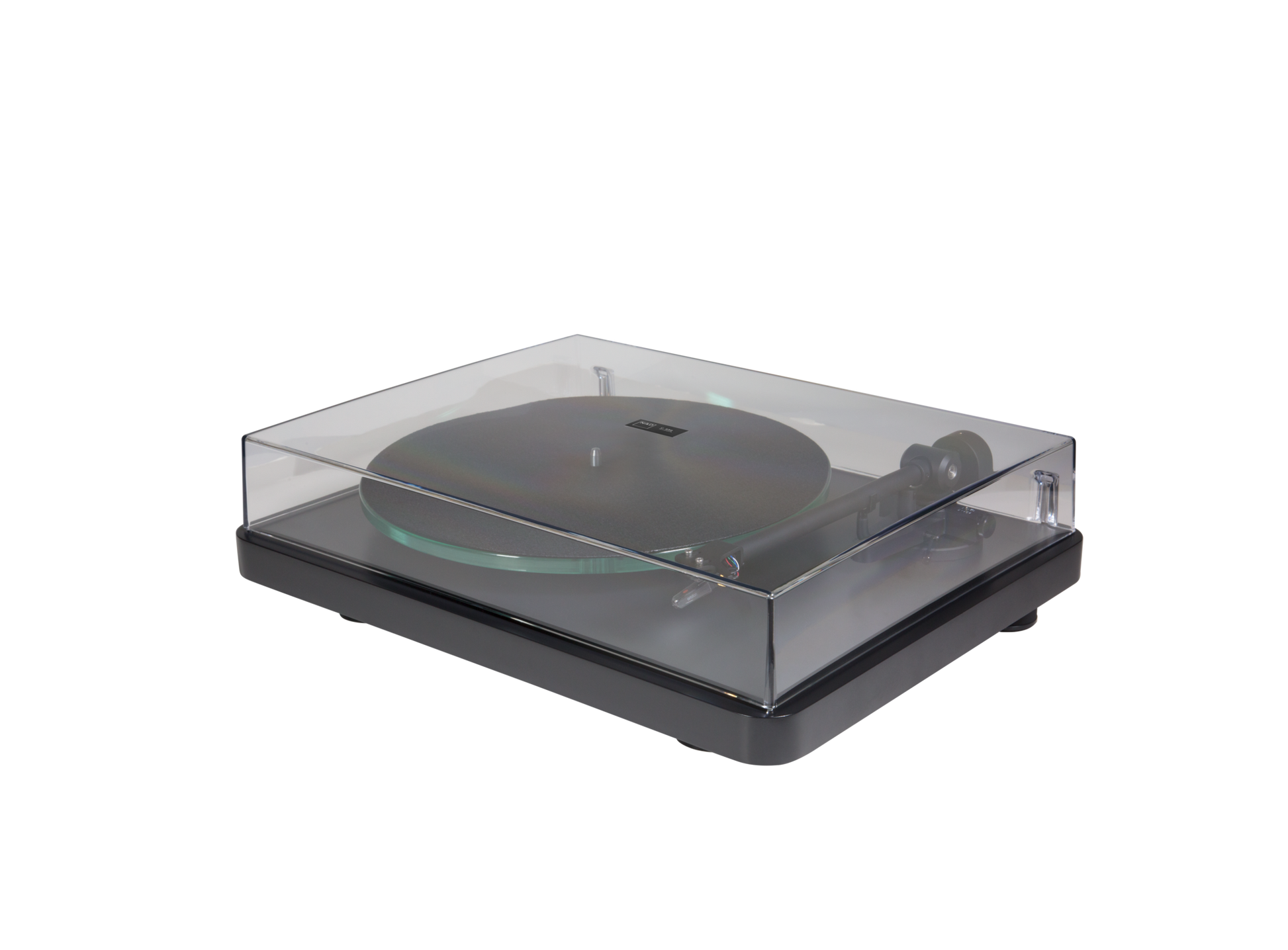

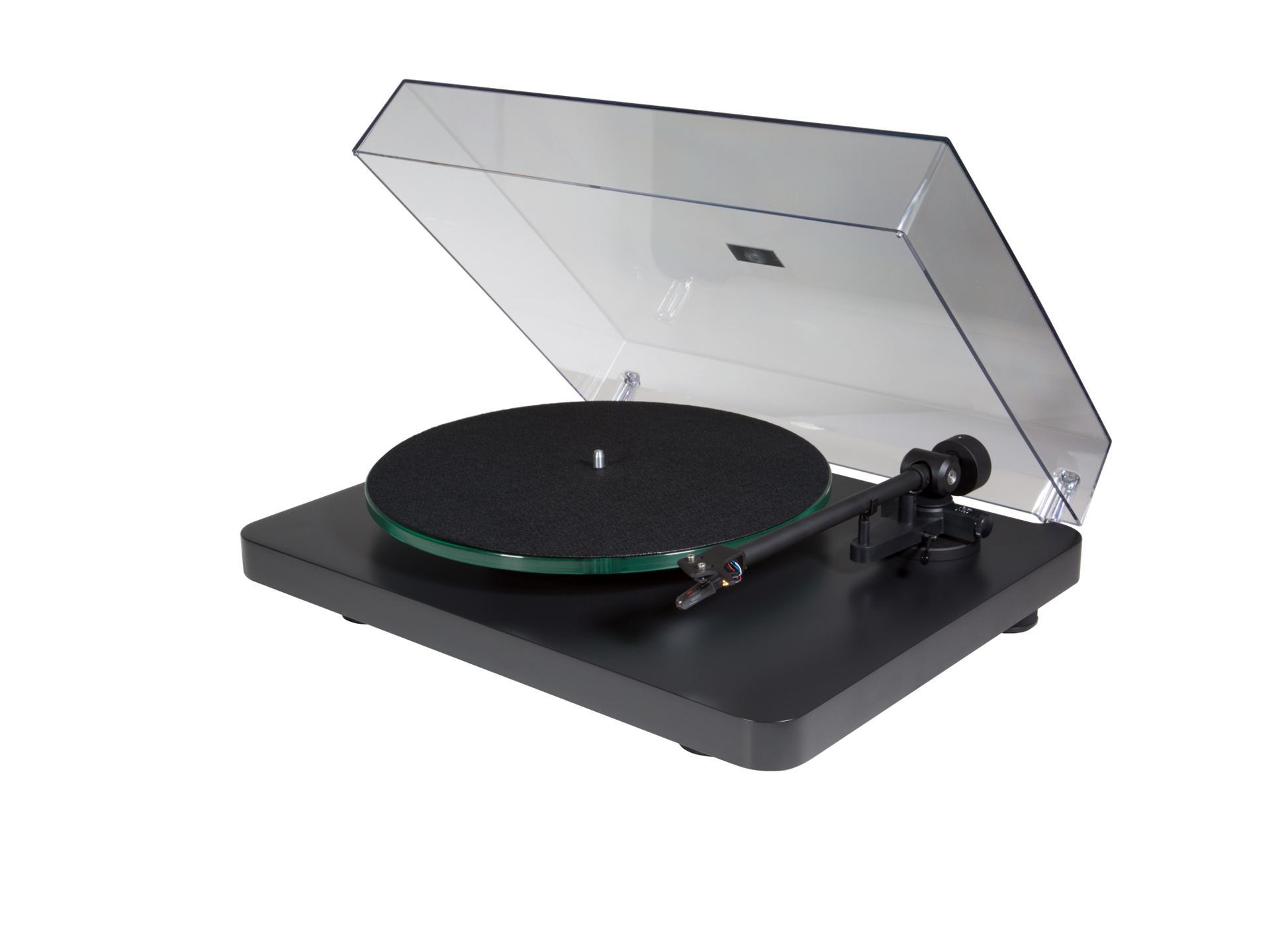

The plinth of the C 558 is solid MDF, as opposed to the particle board or plastic that is commonly found at this value, and is CNC machined for precision. The C 558’s dustcover, too, is heavier than most and made from a non-resonant Perspex with a counter-sprung hinge design that allows the cover to remain in almost any intermediate position from open to closed.

Listening to vinyl records is an immersive experience. You become as involved in the process as you do in the listening. To a much greater degree than with digital sources, vinyl playback requires solid mechanical accuracy to extract the music from the medium. A properly played record is a fantastic and rewarding experience, and the NAD C 558 has everything you need to get maximum enjoyment with minimal fuss and expense.

• Heavy glass platter with felt mat provides excellent speed stability
• High-precision stainless steel and bronze bearing assembly for smooth, quiet platter rotation
• 9" high grade aluminium tonearm
• Includes pre-mounted Ortofon OM10 moving magnet cartridge
• Isolated DC synchronous motor for reduced vibration and superior speed stability
• Medium density fiberboard (MDF) base with adjustable vibration-damping feet
• Gold-plated RCA audio jacks with detachable phono cables
• High-gloss black lacquer finish
• Fully manual operation
• 33-1/3 and 45 rpm speeds (manual speed change)
• Speed variation: ±0.5%
• Wow and flutter: ±0.15%
• Frequency response (with included cartridge): 20-22,000 Hz (±3dB)
• Requires a phono preamp or phono input on receiver or preamplifier

• Turntable chassis
• Tone-Arm (installed)
• Ortofon OM10 Cartridge (installed)
• Sub-platter (installed)
• Platter
• Belt
• AC power adapter
• Dust cover
• Felt pad
• Counter-weight
• 45RPM adapter
• Stereo RCA cable with ground lead
• Stylus pressure gauge
• Plastic tonearm bearings tool
• Paper cartridge alignment tool
• 2 Allen keys
• Pair of white cotton gloves
• Owner's Manual

Operation: Manual
Speeds: 33⅓ , 45
Drive Type: Belt
Cartridge Type: MM (Ortofon OM10)
Phono Preamp: No
45 RPM Adapter: Included
Signal to Noise Ratio: 68
Wow and Flutter: 0.15
Weight: 5.5kg
Width: 435mm
Heigh: 125mm
Depth 340mm
