R2 In-Wall Reference Speaker (Each)

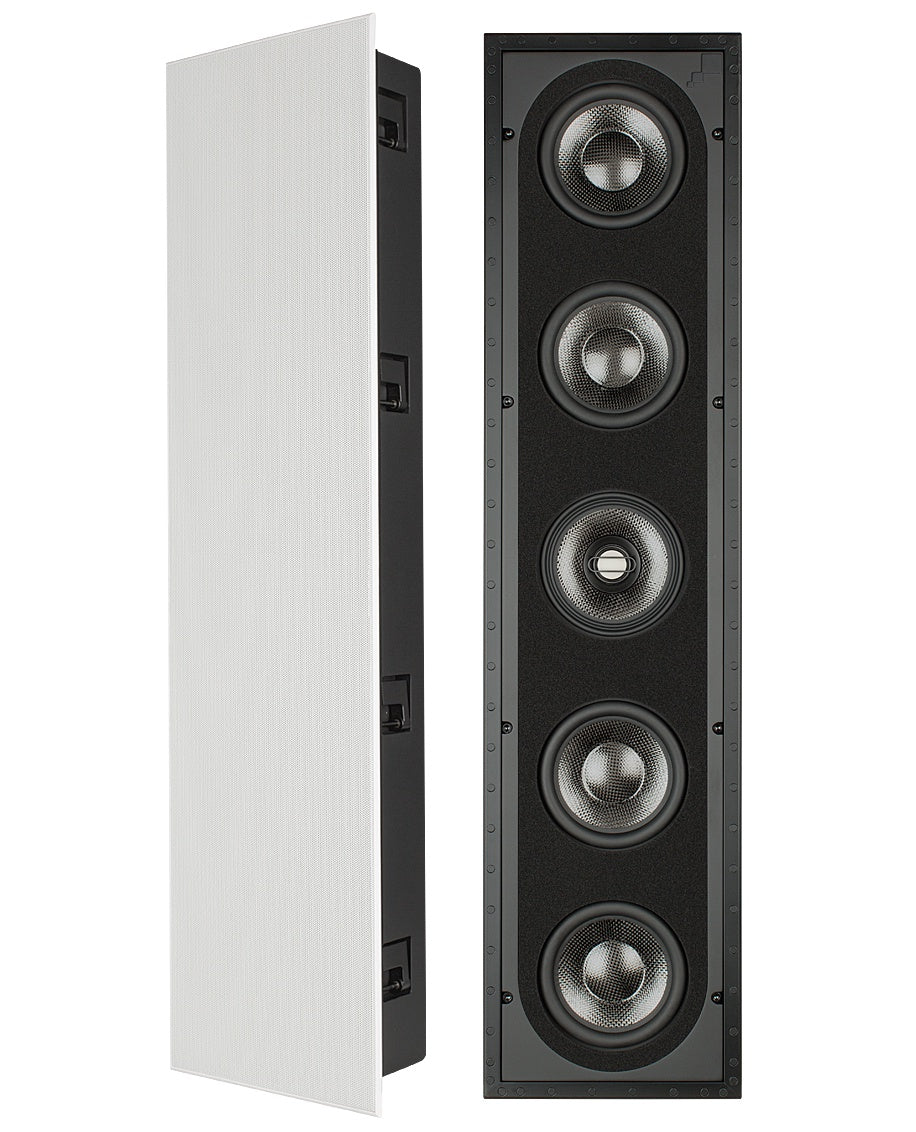

Sonance R2 In-Wall Reference Speaker

Engineered to perfection

Reference Speakers and Subwoofers offer all new driver technology and consistent tonal matching across the line, making it simple to mix and match speaker and subwoofer models in any configuration and still achieve optimized performance.

Technologically advanced

We designed new Reference using Sonance Klippel II technology to ensure that every movement was carefully measured and accurately tuned. The high excursion woofers, 4th generation coaxial driver, individual crossover networks, optimized diffraction baffle and new matte finish combine to create Reference, the standard in fidelity.

Designed to perform

Created for AV specialists designing systems that require the best in surround sound performance with a look that blends into the space, Sonance Reference provides a truly incredible solution. Engineered to give you an amazing cinema experience in any room, Sonance Reference has options for in-wall, in-ceiling, and cabinet speakers as well as in-wall subwoofers. The product family features a low-profile, paintable design that allow you to experience the content without visual intrusion.

Consistent aesthetic

Sonance Reference in-wall and in-ceiling speakers share the same award-winning low-profile grille design as the rest of the Visual Performance family, creating a consistent aesthetic throughout the home.

Compatible with various construction types

Sonance Reference Series in-wall and in-ceiling speakers share the same award-winning low-profile grille design as the rest of the Visual Performance family, creating a consistent aesthetic throughout the home.

Mix and match

Sonance Reference Series in-wall and in-ceiling speakers feature a one-piece paintable grille that allows for a one-step painting process. This ensures a high quality result is achieved along with accurate color matching of the adjoining wall or ceiling surface.

Specifications

Tweeter: 1" (25mm) Ceramic dome, Ferrofluid-cooled in an acoustic back chamber
Midrange: 5 1/4" (133mm) Carbon fiber/Rohacell laminated cone with a rubber surround
Woofer: Four 5 1/4" (133mm) Carbon fiber/Rohacell laminated cones with rubber surrounds
Frequency Response: 70Hz - 30kHz ±3dB
Impedance: 6 ohms nominal; 4 ohms minimum
Power Handling: 5 watts minimum; 200 watts maximum
Sensitivity: 92dB SPL (2.83V/1 meter)
Speaker Depth 98mm
Dimensions (WxH): 225mm x 886mm
Cut-Out Dimensions (WxH): 191mm x 851mm
Grille Material: Perforated steel
Weight: 13.2kg each
