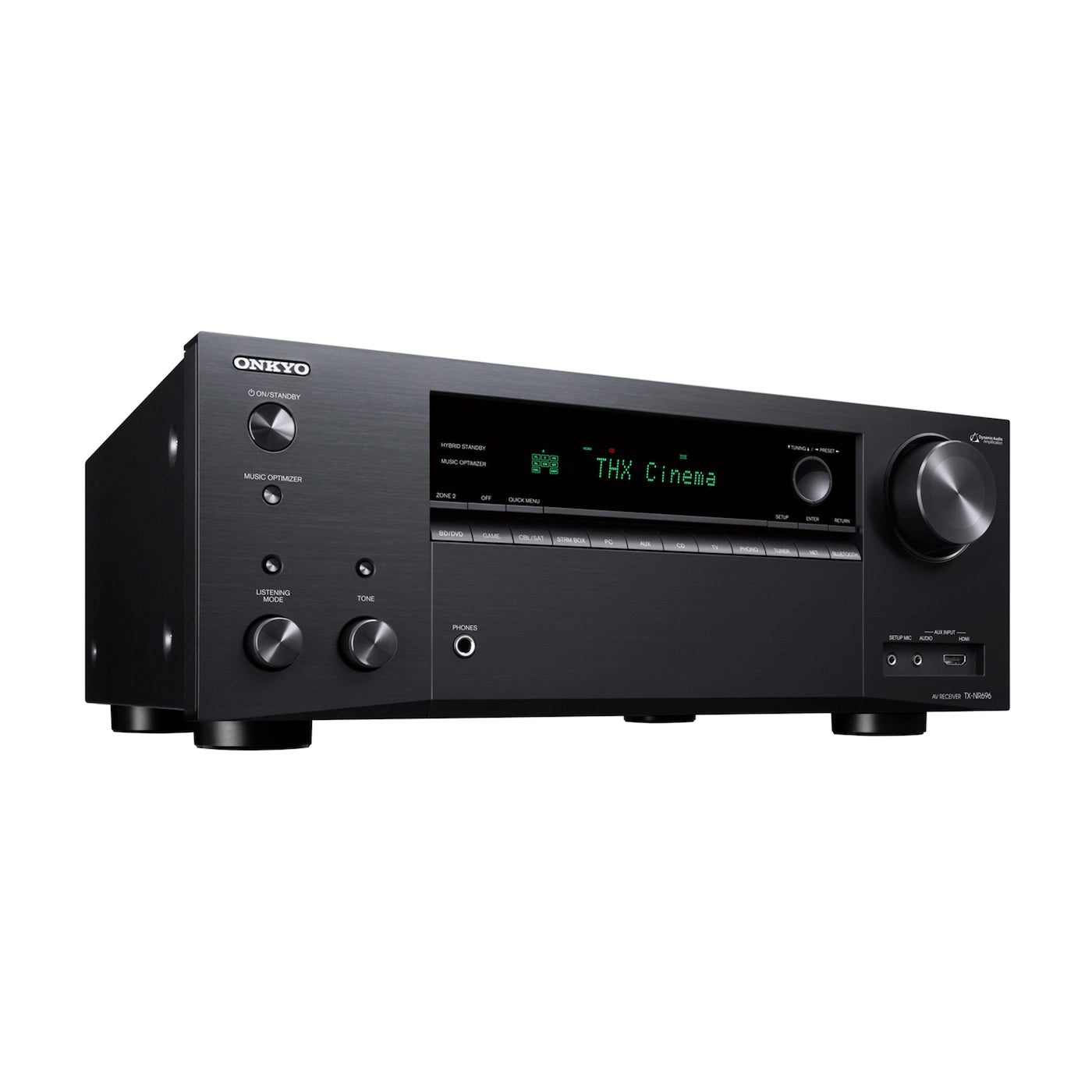

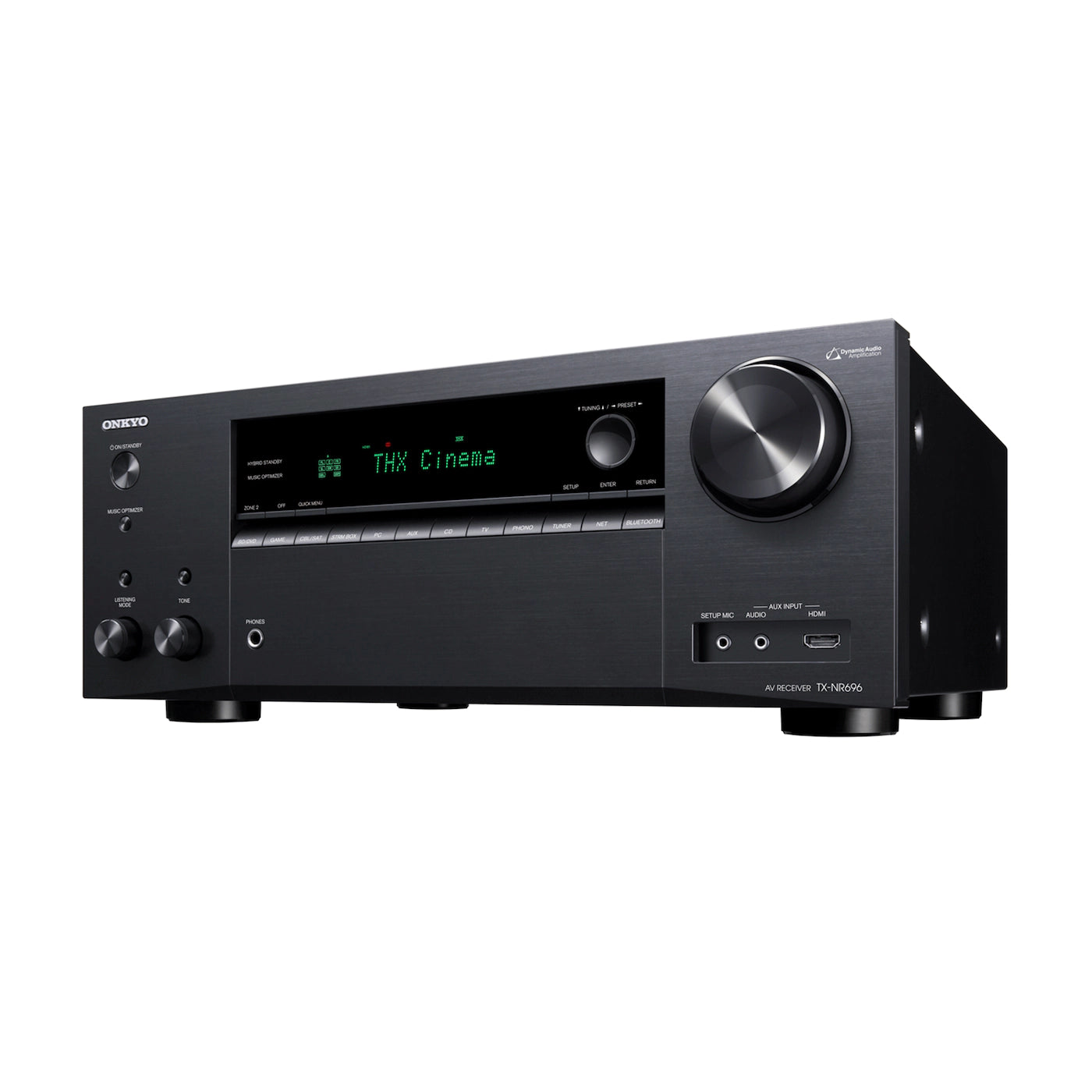

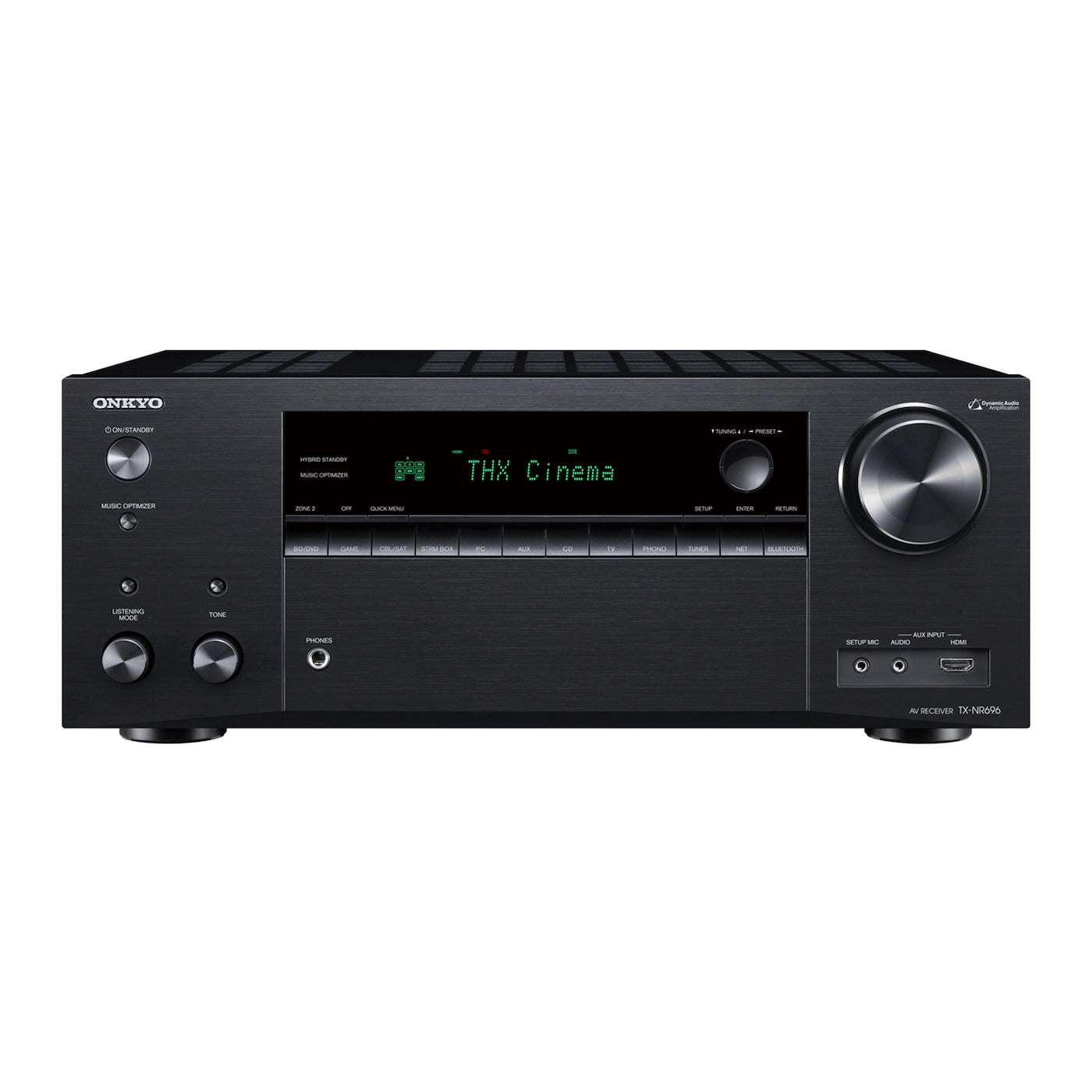

TX-NR696

7.2-Channel Network AV Receiver

A harmonious mix of tech and tradition, the TX-NR696 adapts to entertainment life and finds the emotion in every sound source, from 3D film scores to vinyl records.

THX CERTIFIED SELECT TM THEATER-REFERENCE SOUND

THX Certified Select guarantees the same reference volume level of a commercial theater in rooms where the viewing position is about 10–12 ft. from the screen. To gain certification for reference sound within strict THX sound quality parameters, receivers must pass 2,000 bench-tests in 75 categories covering 14,000 data points.

DOLBY ATMOS AND DTS:X – SETTING SOUND FREE

Dolby Atmos and DTS:X formats allow engineers to map sound anywhere in 3D space, effects moving from speaker to speaker all around the room and wrapping your audience in the latest films and games. You can also enjoy your 3D speaker layout with classic titles. Dolby Surround and DTS Neural:X find overhead cues in legacy soundtracks and upmix for awesome spatial realism.

DOLBY ATMOS HEIGHT VIRTUALIZER

When playing any Dolby format, engaging Dolby Atmos Height Virtualizer enables a more immersive listening experience, creating a virtual surround and height effect from traditional speaker layouts without employing additional surround or height speakers.

DYNAMIC AUDIO AMPLIFICATION

Refined over 70 years to deliver emotion in high fidelity, DAA features a custom High-Current Low-Noise Power Transformer, customized capacitors, and discrete amp output stages. Unique topology prevents phase-shift while high current improves speaker control for true dynamic speed. Driving 4-ohm loads through all channels, DAA has power to move.

Chromecast Built-In with the Google Assistant

Stream any music from your smartphone, laptop, or PC to the receiver with ease. Control playback with Chromecast-enabled apps you know and love from your iPhone, iPad, Android phone or tablet, Mac or Windows laptop, or Chromebook. If you have a smart speaker featuring the Google Assistant, you can cue, play, and control music playback by voice.

Specifications

Channels: 7.2
Power per channel: (8 Ohms 20-20kHz, 2 Channels Driven, FTC) 100 Watts, 0.08% THD
Frequency Response: 10 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)
Speaker Impedance: 4 Ohms–16 Ohms
Power Consumption: 635W
Dimensions (W x H x D): 435 x 173.5 x 379.5 mm
Weight: 10kg
